AP-114 Programming System
£250.00

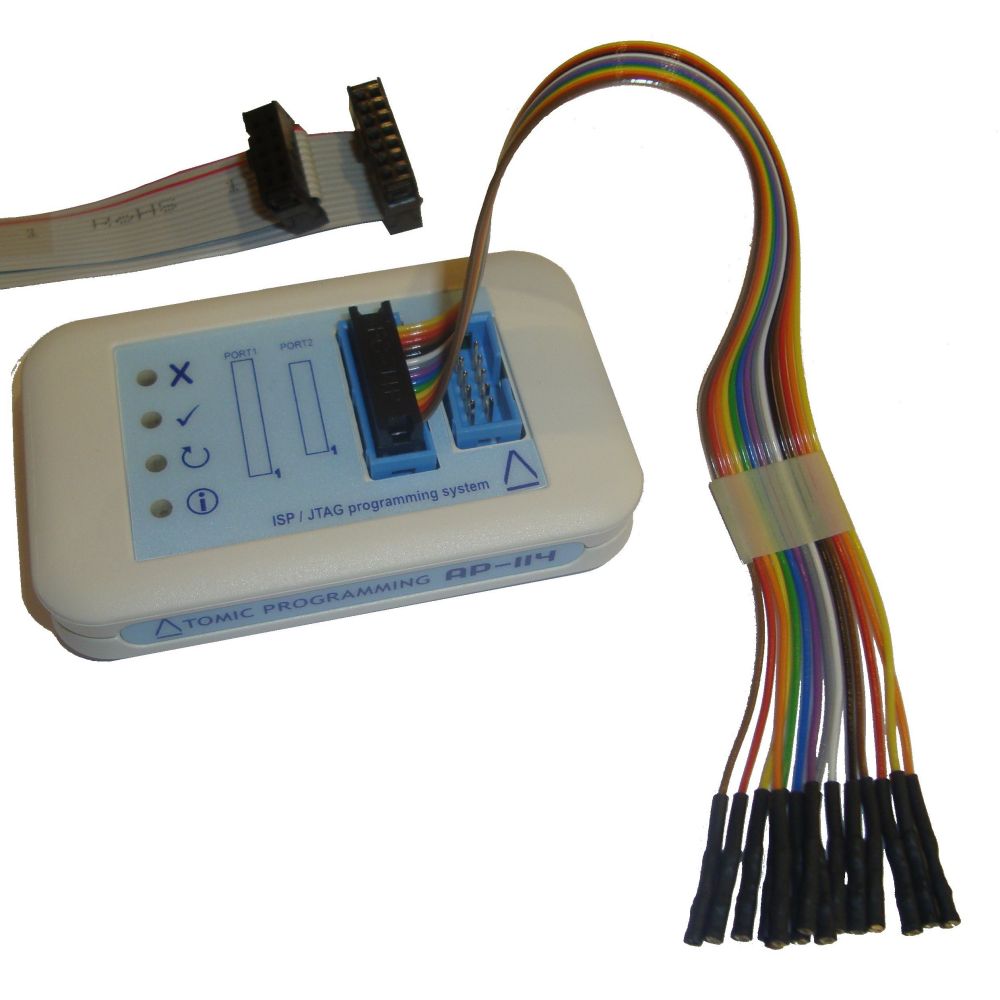

The AP-114 ISP/JTAG Programming System provides a single, portable, all-in-one solution for In-System Programming (ISP) of both JTAG and non-JTAG devices, Boundary Scan Testing, JTAG debugging and out of system device programming.
SKU :
AP-114
The AP-114 ISP/JTAG Programming System provides a single, portable, all-in-one solution for In-System Programming (ISP) of both JTAG and non-JTAG devices, Boundary Scan Testing, JTAG debugging and out of system device programming.
The AP-114 supports JTAG, SPI, I2C and Microwire interfaces and is supplied as standard with Infinity Express
Features
- In-System Programmer for Serial Flash & EEPROMs, Atmel AVR, Microchip PIC, etc.
- Standalone Programming for SPI Flash and SPI, I2C & MicroWire serial EEPROMs
- Powerful and flexible user software includes Infinity Express & Program s standard
- DLL to integrate the AP-114 to your own system
- Built in Power supply from 1.8 to 3.3 Volts
- Multi-programmer support - link 16 units together

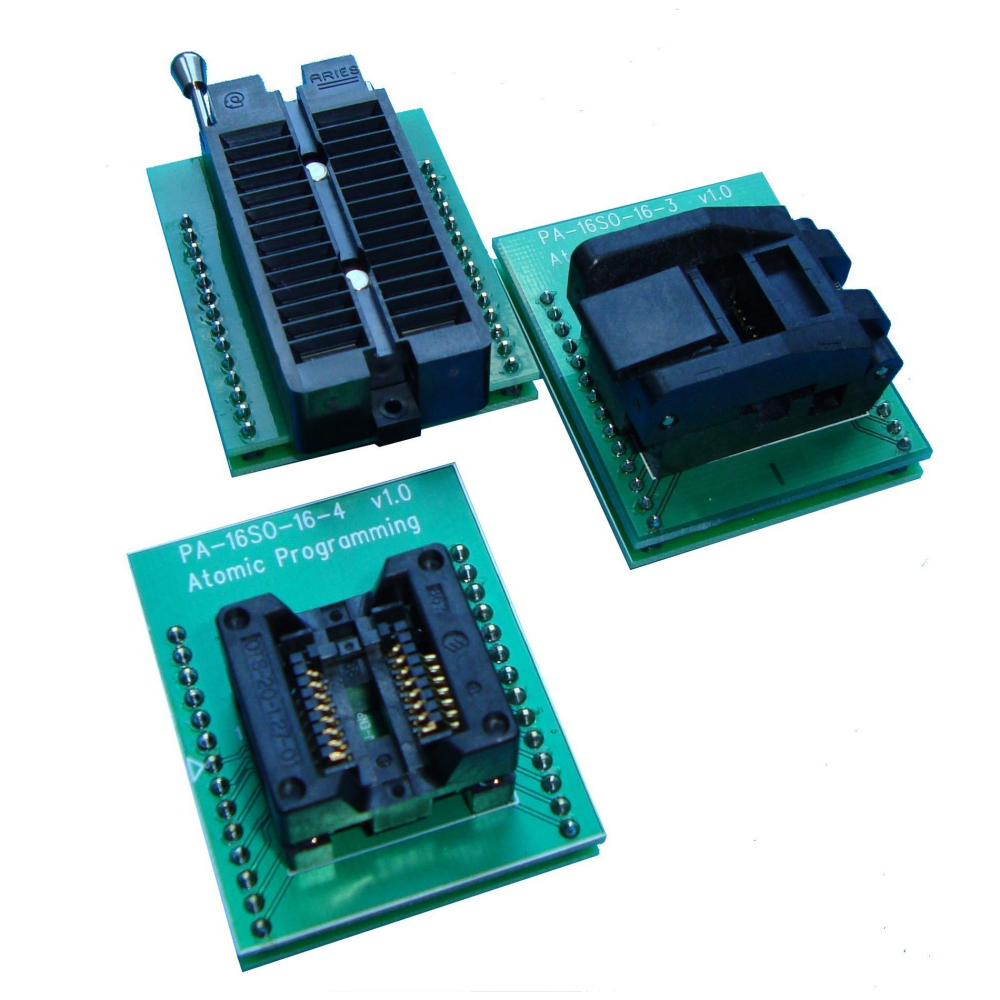

Plug-in adapter pods support a range of package options for stand-alone mode
- PAJ-28DIP-1 : 8 pin DIP parts
- PAJ-16SO-1 : 8 pin JEDEC SOIC parts
- PAJ-16SO-3 : 8 pin JEDEC SOIC parts (Clam Shell)
- PAJ-16SO-4 : 8 pin EIAJ SOIC parts
JTAG features:
- JTAG Programming, configuration and testing for all JTAG / IEEE 1149.1 compatible devices<
- SVF & STAPL(JAM) Player - plays STAPL, JAM, JBC, SVF files
- Dual port headers support a range of JTAG pinouts, including Altera & Xilinx
- Generic GDB Proxy server - converts GDB messages into JTAG sequences
- Optional Boundary Scan Test software
- Optional cable for Jennic JN51x8 Wireless Microcontroller debugging (using JenNet stack)
For full JTAG & Boundary Scan functions, please visit www.jtagtools.co.uk
