  5. PA-20PL-20-2
PA-20PL-20-2
  • PA-20PL-20-2
  • PA-20PL-20-2

PA-20PL-20-2

£115.00

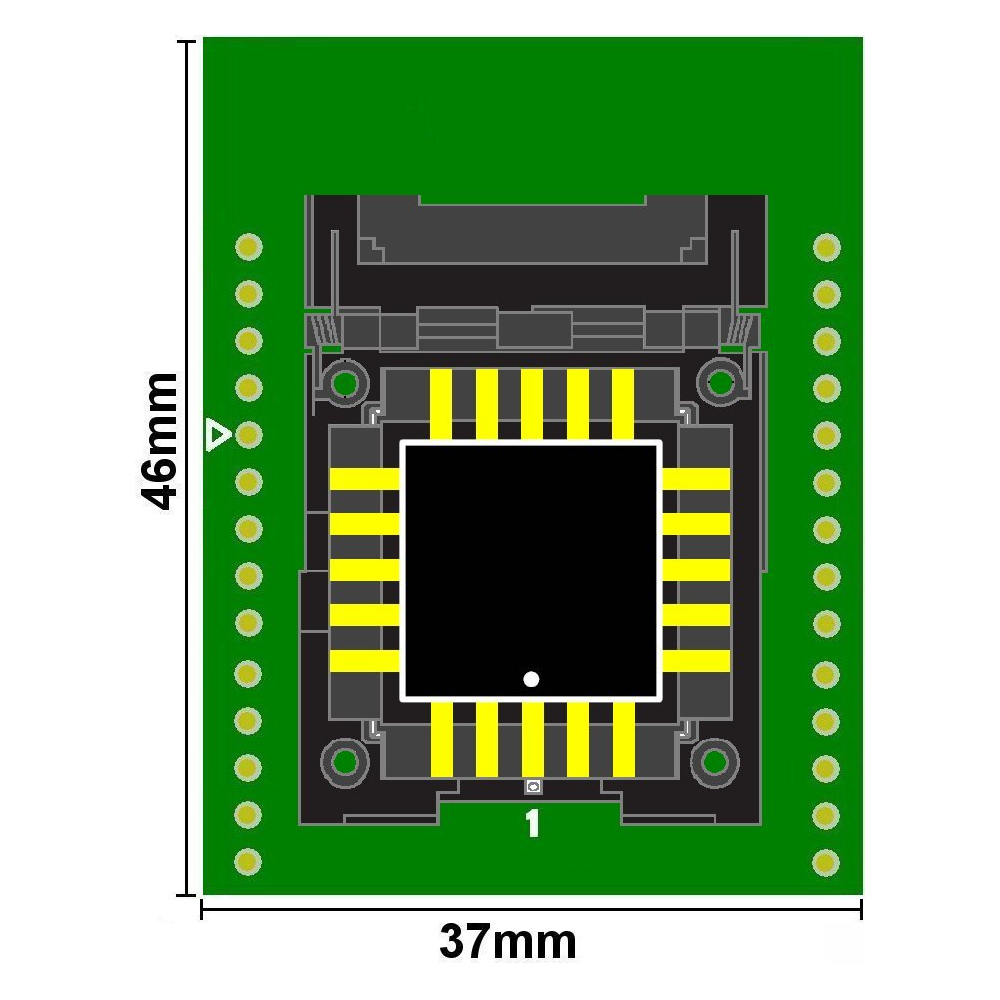

Universal programming & test package adapter for all 1.27mm pitch JEDEC standard J-lead PLCC devices with 20 pins.

Maps to a standard 0.1” (2.54mm) pitch 0.6” wide Dual In-line Pin-out (DIP)

SKU : PA20PL-2

Universal programming & test package adapter for all 1.27mm pitch JEDEC standard J-lead PLCC devices with 20 pins.

Maps to a standard 0.1” (2.54mm) pitch 0.6” wide Dual In-line Pin-out (DIP)

The Clam-shell Zero-Insertion Force (ZIF) socket allows easy insertion and removal of devices.

The adapter is for use on any programming or test equipment.

Example Devices:

1-to-1 Mapping for all 20-pin devices including FPGA Configuration SPROMs (EPC, 17Cxx, etc) & Programmable logic devices (16V8, 18V8)

Notes

  1. The adapter uses an IC51 series Clam-Shell Zero-Insertion Force (ZIF) socket from Yamaichi (Socket code: IC51-0204-602)
  2. It has a life cycle of 10,000 insertion cycles (minimum) under normal use.
  3. Operating temperature range: -50°C ~ +150°C
  4. Printed circuit board material: RF4 with 1 Once copper with a Nickel/Gold RoHS compliant finish
  5. Adapter is Lead-free and RoHS compliant
