PA-28PL-24-1
  • PA-28PL-24-1
  • PA-28PL-24-1

PA-28PL-24-1

£70.00

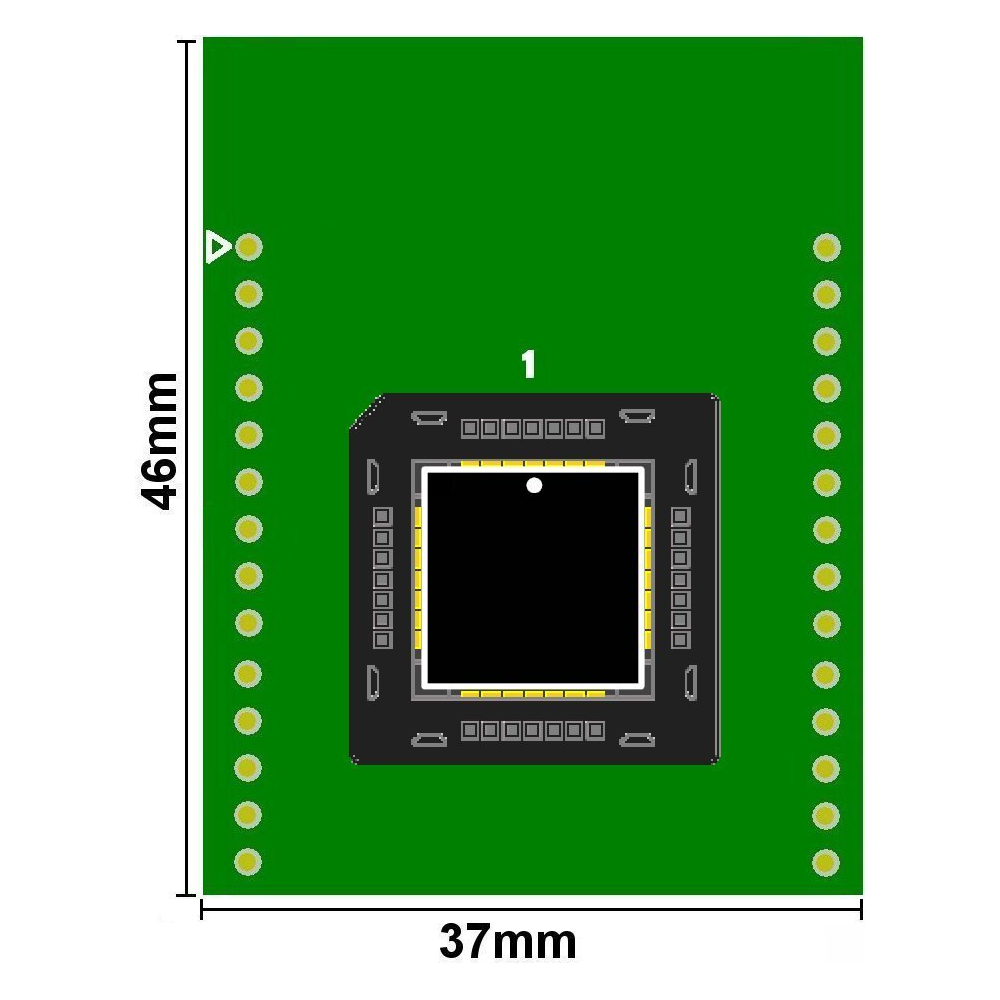

Programming adapter for 1.27mm pitch JEDEC standard J-lead PLCC programmable logic devices (PLDs) with 28 pins.

Maps to a standard 24-pin Dual In-line Pin-out (DIP) - 0.1” (2.54mm) pitch 0.6” wide

SKU : PA28PL24-1

Programming adapter for 1.27mm pitch JEDEC standard J-lead PLCC programmable logic devices (PLDs) with 28 pins.

Maps to a standard 24-pin Dual In-line Pin-out (DIP) - 0.1” (2.54mm) pitch 0.6” wide

The open-type push/pop Zero-Insertion Force (ZIF) socket allows easy insertion and removal of devices.

The adapter is for use on any programming or test equipment.

Example Devices:

Maps programmable logic devices 20V8 & 22V10 to a 24-pin DIP pin-out

Notes

  1. The adapter uses an IC120 series open-type push/pop Zero-Insertion Force (ZIF) socket from Yamaichi, with two-point contacts (Socket code: IC120-0284-308)
  2. It has a life cycle of 10,000 insertion cycles (minimum) under normal use.
  3. Operating temperature range: -40°C ~ +170°C
  4. Printed circuit board material: RF4 with 1 Once copper with a Nickel/Gold RoHS compliant finish
  5. Adapter is Lead-free and RoHS compliant
