PA-32ML-32-1
  • PA-32ML-32-1
  • PA-32ML-32-1

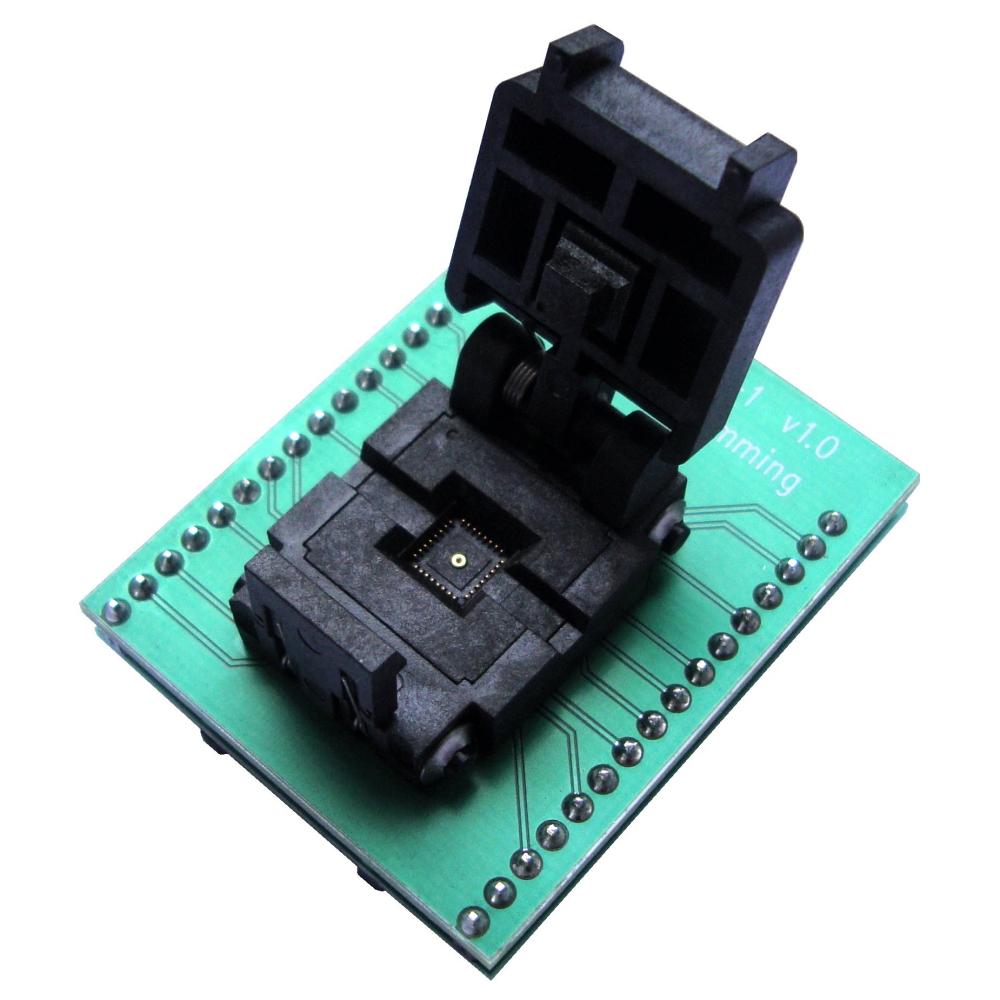

PA-32ML-32-1

£210.00

Programming & test package adapter for 32-pin 0.5mm pitch QFN, MLP & MLF devices.

Maps to a standard 0.1” (2.54mm) pitch 0.6” wide Dual In-line Pin-out (DIP)

SKU : PA32ML-1

Programming & test package adapter for 32-pin 0.5mm pitch QFN, MLP & MLF devices.

Maps to a standard 0.1” (2.54mm) pitch 0.6” wide Dual In-line Pin-out (DIP)

The Clam-shell Zero-Insertion Force (ZIF) socket allows easy insertion and removal of devices.

The adapter is for use on any programming or test equipment.

Example Devices:

1-to-1 Mapping for all 32-pin QFN, MLP & MLF package devices including memory & microcontrollers

Notes

  1. The adapter uses an 32QN series Clam-Shell Zero-Insertion Force (ZIF) socket from Plastronics (Socket code: 32QN50S15050)
  2. It has a life cycle of 5,000 insertion cycles (minimum) under normal use.
  3. Operating temperature range: -55°C ~ +150°C
  4. Printed circuit board material: RF4 with 1 Once copper with a Nickel/Gold RoHS compliant finish
  5. Adapter is Lead-free and RoHS compliant
