PA-32SD-32-1
  • PA-32SD-32-1
  • PA-32SD-32-1

PA-32SD-32-1

£125.00

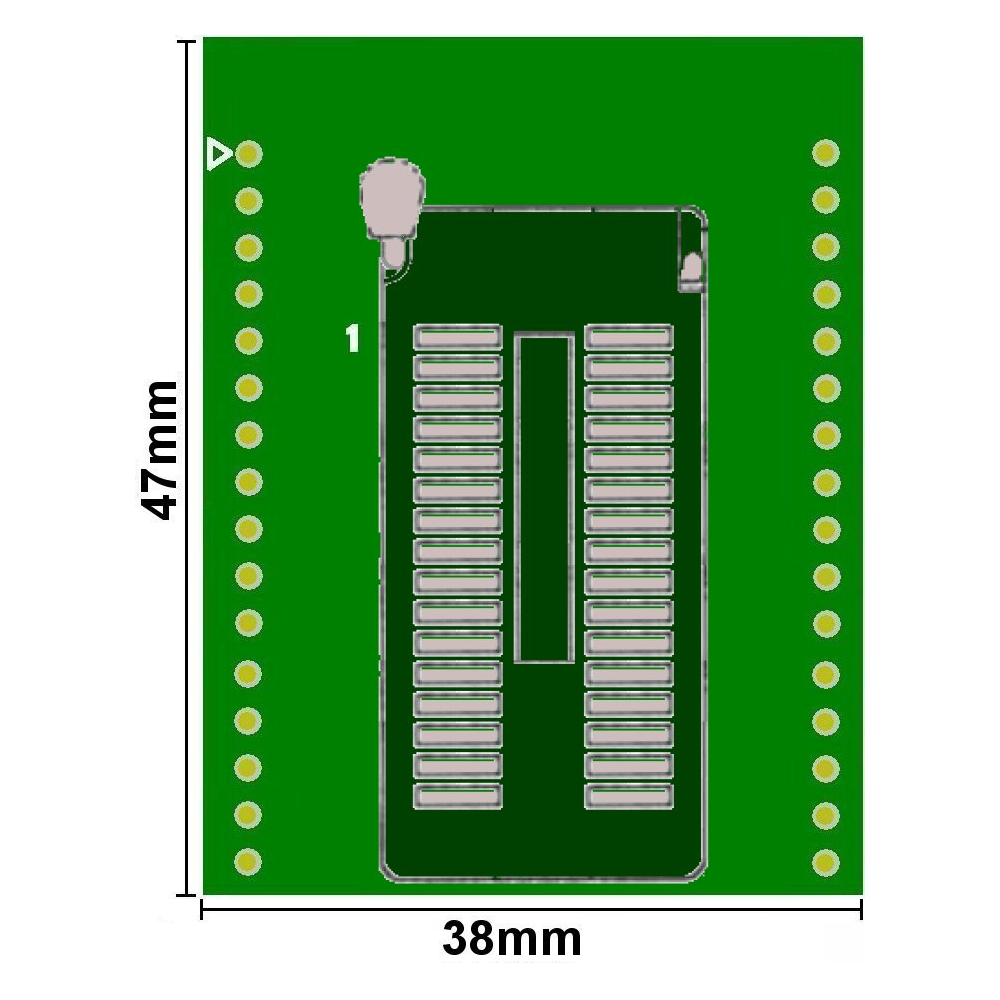

Universal programming & test package adapter for 32-pin 0.70” (1.78mm) pitch Shrink-DIP devices.

Maps to a standard 0.1” (2.54mm) pitch 0.6” wide Dual In-line Pin-out (DIP)

SKU : PA32SD-1

Universal programming & test package adapter for 32-pin 0.70” (1.78mm) pitch Shrink-DIP devices.

Maps to a standard 0.1” (2.54mm) pitch 0.6” wide Dual In-line Pin-out (DIP)

The Zero-Insertion Force (ZIF) socket allows easy insertion and removal of devices.

The adapter is for use on any programming or test equipment.

Example Devices:

1-to-1 Mapping for all 8 to 32-pin SDIP devices including memory & microcontrollers

Notes

  1. The adapter uses a lever actuated Zero-Insertion Force (ZIF) socket from 3M (Socket code: 232-1291-00-0602J)
  2. It has a life cycle of 20,000 insertion cycles (minimum) under normal use.
  3. Operating temperature range: -55°C ~ +150°C
  4. Printed circuit board material: RF4 with 1 Once copper with a Nickel/Gold RoHS compliant finish
  5. Adapter is Lead-free and RoHS compliant
