PA-6SOT-1
  • PA-6SOT-1
  • PA-6SOT-1

PA-6SOT-1

£70.00

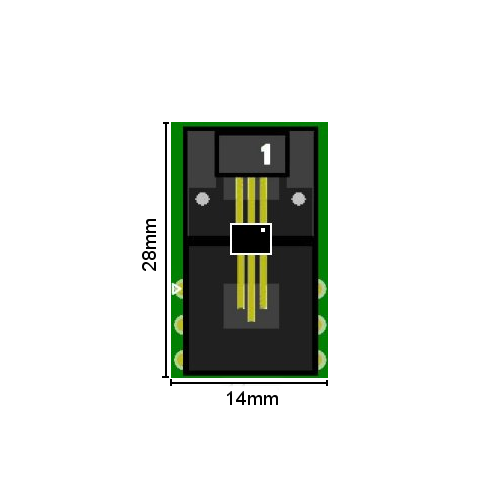

Clam-shell programming & test package adapters for 5 & 6-pin 0.037" pitch SOT-23 package devices.

Maps to a standard 6 or 8-pin 0.1" (2.54mm) pitch 0.3" wide Dual In-line Pin-out (DIP)

SKU : PA-6SOT-1

Clam-shell programming & test package adapters for 5 & 6-pin 0.037" pitch SOT-23 package devices.

Maps to a standard 6 or 8-pin 0.1" (2.54mm) pitch 0.3" wide Dual In-line Pin-out (DIP)

The Clam-shell Zero-Insertion Force (ZIF) socket allows easy insertion and removal of devices.

The adapter is for use on any test equipment.

Example Devices:

1-to-1 Mapping for all 5/6-pin SOT-23 devices

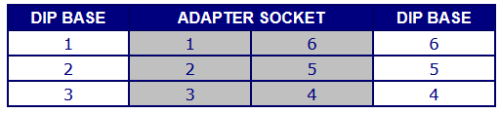

Pin Mapping:



Notes

  1. The adapter uses an 499 series Clam-shell Zero-Insertion Force (ZIF) socket from Wells (Socket code: 499-P44-20)
  2. It has a life cycle of 10,000 insertion cycles (minimum) under normal use.
  3. Operating temperature range: -55°C ~ +155°C
  4. Printed circuit board material: RF4 with 1 Once copper with a Nickel/Gold RoHS compliant finish
  5. Adapter is Lead-free and RoHS compliant
