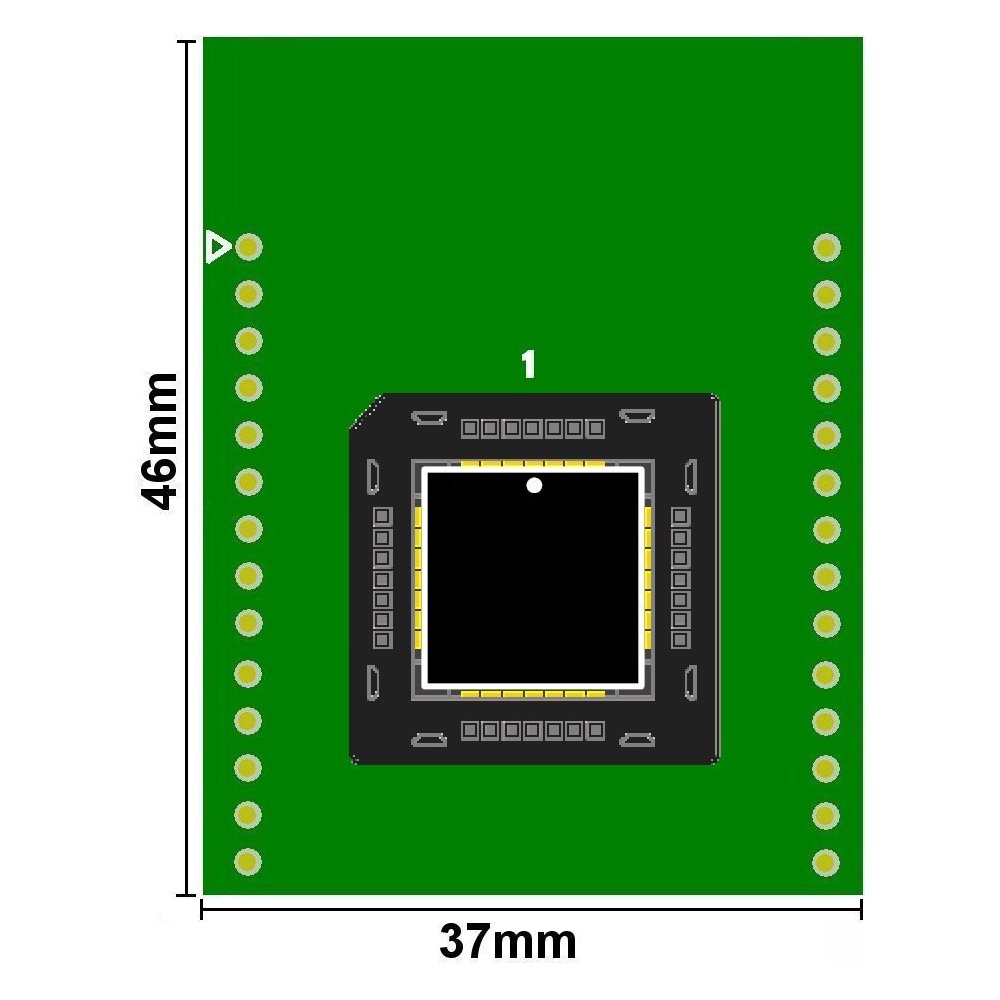

PA-28PL-28-1
  • PA-28PL-28-1
  • PA-28PL-28-1

PA-28PL-28-1

£70.00

Universal programming & test package adapter for all 1.27mm pitch JEDEC standard J-lead PLCC devices with 28 pins.

Maps to a standard 0.1” (2.54mm) pitch 0.6” wide Dual In-line Pin-out (DIP)

SKU : PA28PL-1

Universal programming & test package adapter for all 1.27mm pitch JEDEC standard J-lead PLCC devices with 28 pins.

Maps to a standard 0.1” (2.54mm) pitch 0.6” wide Dual In-line Pin-out (DIP)

The open-type push/pop Zero-Insertion Force (ZIF) socket allows easy insertion and removal of devices.

The adapter is for use on any programming or test equipment.

Example Devices:

1-to-1 Mapping for all 28-pin devices including Z8 and LPC microcontrollers, & 26V12 Programmable logic devices

Notes

  1. The adapter uses an IC120 series open-type push/pop Zero-Insertion Force (ZIF) socket from Yamaichi, with two-point contacts (Socket code: IC120-0284-308)
  2. It has a life cycle of 10,000 insertion cycles (minimum) under normal use.
  3. Operating temperature range: -40°C ~ +170°C
  4. Printed circuit board material: RF4 with 1 Once copper with a Nickel/Gold RoHS compliant finish
  5. Adapter is Lead-free and RoHS compliant
