PA-44PQ-44-2
  • PA-44PQ-44-2
  • PA-44PQ-44-2

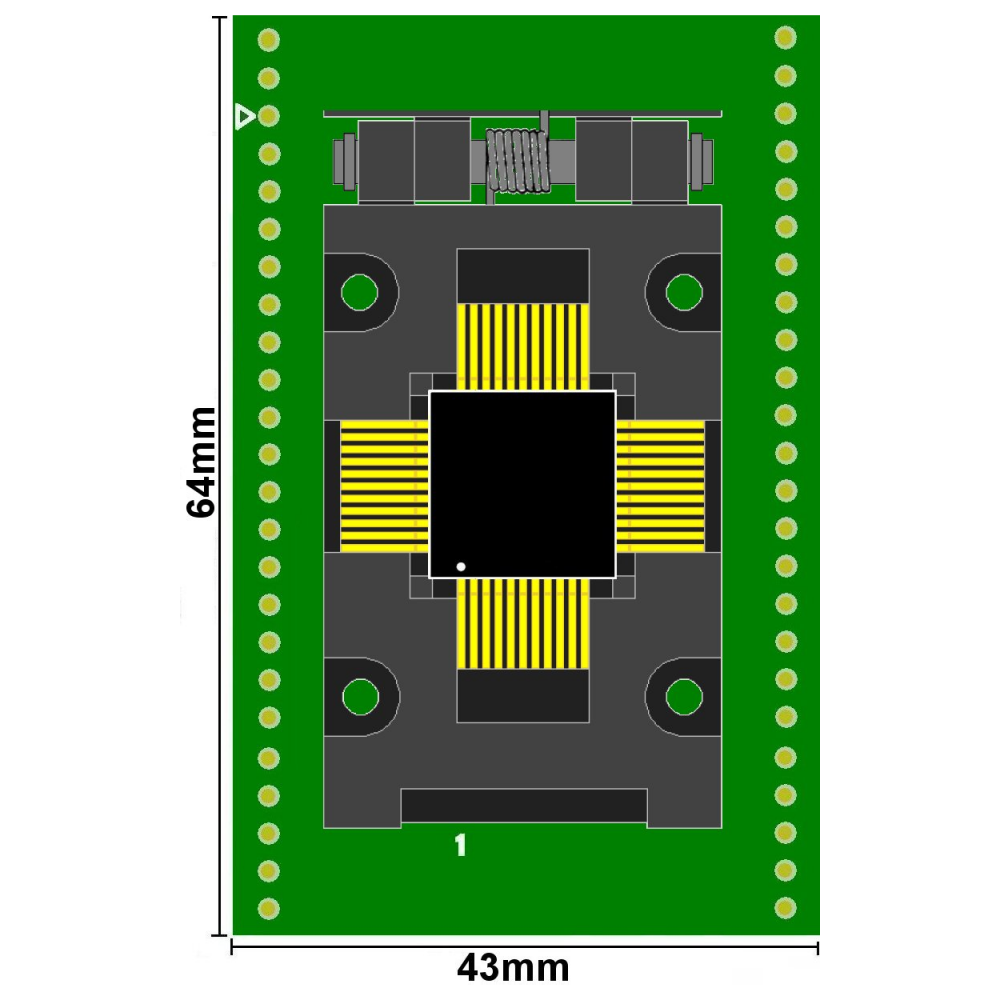

PA-44PQ-44-2

£150.00

Universal programming & test package adapter for all 44-pin 0.8mm pitch PQFP devices..

Maps to a standard 0.1” (2.54mm) pitch 0.6” wide Dual In-line Pin-out (DIP)

SKU : PA44PQ-2

Universal programming & test package adapter for all 44-pin 0.8mm pitch PQFP devices..

Maps to a standard 0.1” (2.54mm) pitch 0.6” wide Dual In-line Pin-out (DIP)

The Clam-shell Zero-Insertion Force (ZIF) socket allows easy insertion and removal of devices.

The adapter is for use on any programming or test equipment.

Example Devices:

1-to-1 Mapping for all 44-pin PQFP devices including 16-bit EPROMs, 8051, AVR, HC05, COP8 & PIC Microcontrollers, CPLDs etc.

Notes

  1. The adapter uses a FPQ series Clam-shell Zero-Insertion Force (ZIF) socket from Enplas (Socket code: FPQ-44-0.8-16A)
  2. It has a life cycle of 10,000 insertion cycles (minimum) under normal use.
  3. Operating temperature range: -65°C ~ +150°C
  4. Printed circuit board material: RF4 with 1 Once copper with a Nickel/Gold RoHS compliant finish
  5. Adapter is Lead-free and RoHS compliant
