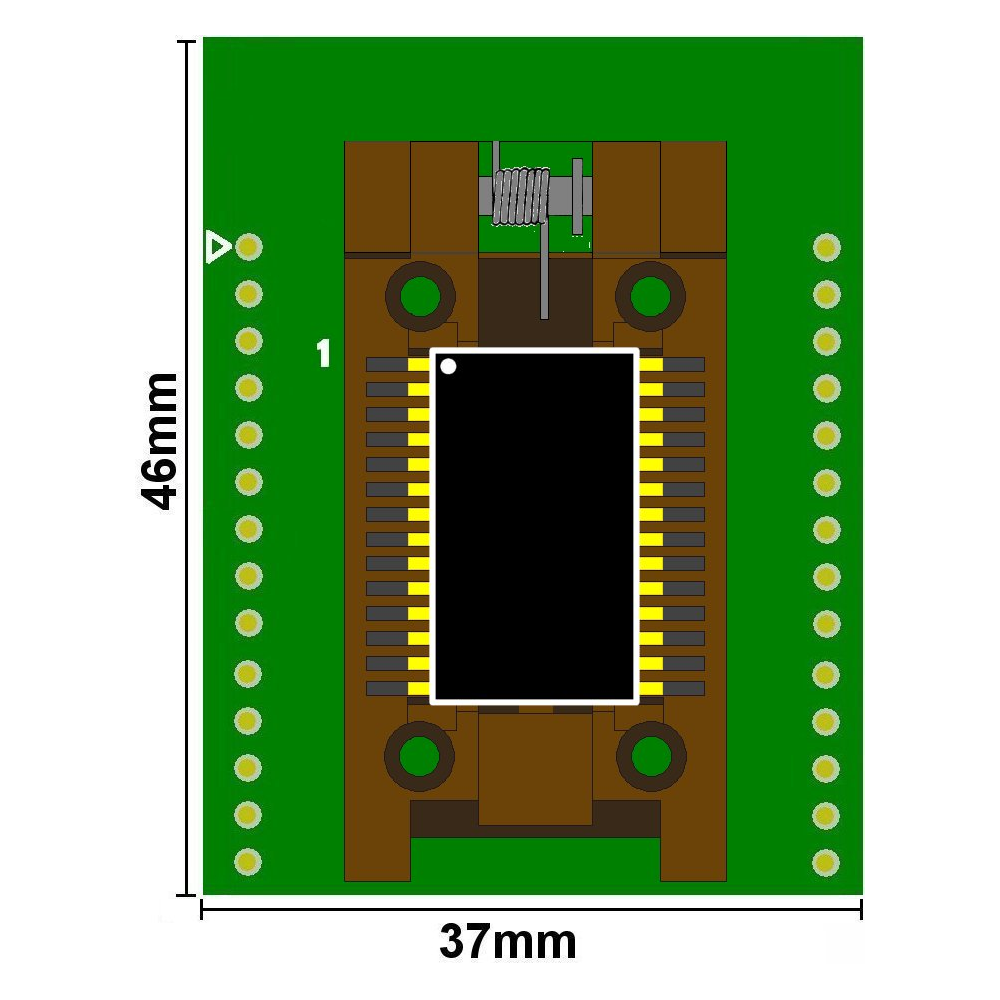

PA-28SO-28-1
  • PA-28SO-28-1
  • PA-28SO-28-1

PA-28SO-28-1

£85.00

Universal Clam-shell programming & test package adapter for all 1.27mm pitch 0.3” wide body JEDEC SOIC devices from 18 to 28 pins.

Maps to a standard 0.1” (2.54mm) pitch 0.6” wide Dual In-line Pin-out (DIP)

SKU : PA28SO-1

Universal Clam-shell programming & test package adapter for all 1.27mm pitch 0.3” wide body JEDEC SOIC devices from 18 to 28 pins.

Maps to a standard 0.1” (2.54mm) pitch 0.6” wide Dual In-line Pin-out (DIP)

The Clam-shell Zero-Insertion Force (ZIF) socket allows easy insertion and removal of devices.

The adapter is for use on any programming or test equipment.

Example Devices:

1-to-1 Mapping for all 18 to 28-pin devices including Parallel EEPROMs, Programmable Logic (PLD) devices, 89Cx051, Microchip PICs, Motorola HC05/08 & Philips LPC microcontrollers

Notes

  1. The adapter uses an FP series Clam-Shell Zero-Insertion Force (ZIF) socket from Enplas. (Socket code: FP-28-1.27-08)
  2. It has a life cycle of 10,000 insertion cycles (minimum) under normal use.
  3. Operating temperature range: -40°C ~ +150°C
  4. Printed circuit board material: RF4 with 1 Once copper with a Nickel/Gold RoHS compliant finish
  5. Adapter is Lead-free and RoHS compliant
