PA-28SO-28-2
  • PA-28SO-28-2
  • PA-28SO-28-2

PA-28SO-28-2

£75.00

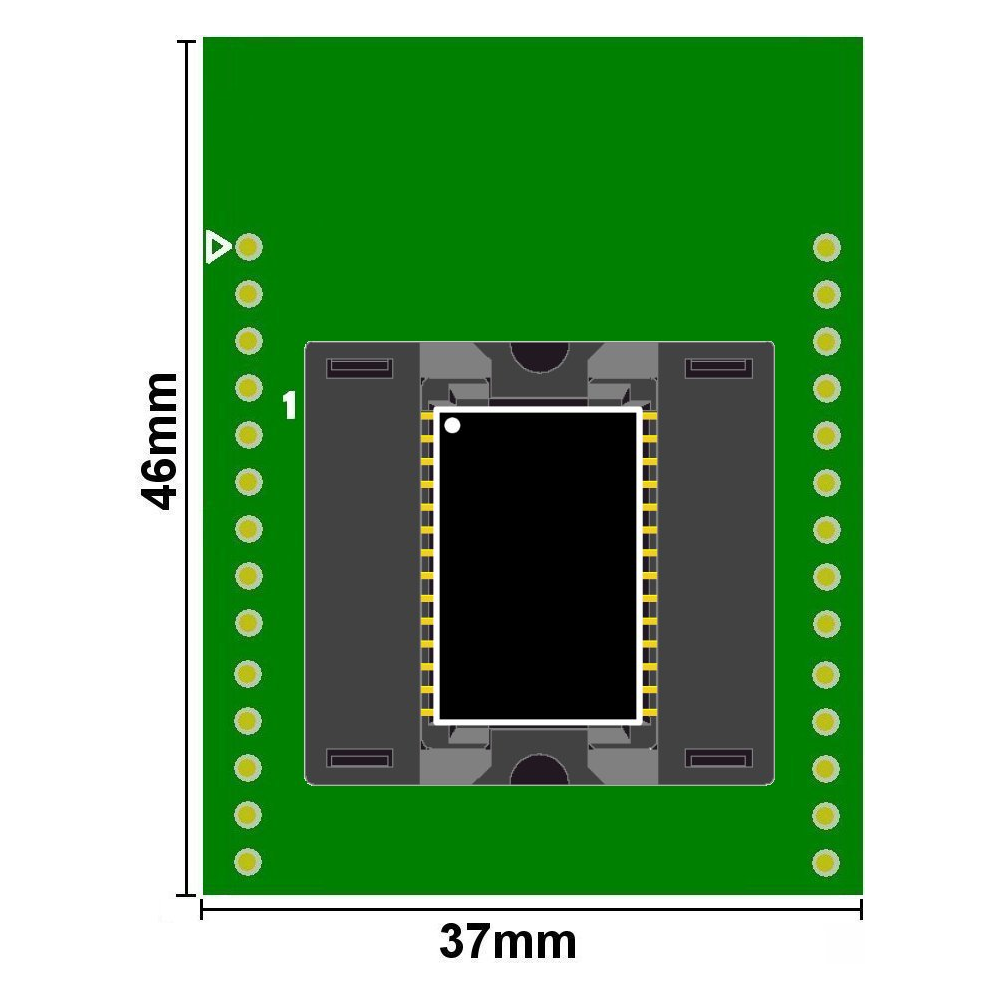

Universal programming & test package adapter for all 1.27mm pitch 0.3” wide body JEDEC SOIC devices from 18 to 28 pins.

Maps to a standard 0.1” (2.54mm) pitch 0.6” wide Dual In-line Pin-out (DIP)

SKU : PA28SO-2

Universal programming & test package adapter for all 1.27mm pitch 0.3” wide body JEDEC SOIC devices from 18 to 28 pins.

Maps to a standard 0.1” (2.54mm) pitch 0.6” wide Dual In-line Pin-out (DIP)

The open-type push/pop Zero-Insertion Force (ZIF) socket allows easy insertion and removal of devices.

The adapter is for use on any programming or test equipment.

Example Devices:

1-to-1 Mapping for all 18 to 28-pin devices including Parallel EEPROMs, Programmable Logic (PLD) devices, 89Cx051, Microchip PICs, Motorola HC05/08 & Philips LPC microcontrollers

Notes

  1. The adapter uses a 652 series open-type push/pop Zero-Insertion Force (ZIF) socket from Wells, with pinch contacts (Socket code: 652D0282211)
  2. It has a life cycle of 10,000 insertion cycles (minimum) under normal use.
  3. Operating temperature range: -40°C ~ +150°C
  4. Printed circuit board material: RF4 with 1 Once copper with a Nickel/Gold RoHS compliant finish
  5. Adapter is Lead-free and RoHS compliant
