  6. PA-20TS-20-1
PA-20TS-20-1
  • PA-20TS-20-1
  • PA-20TS-20-1

PA-20TS-20-1

£100.00

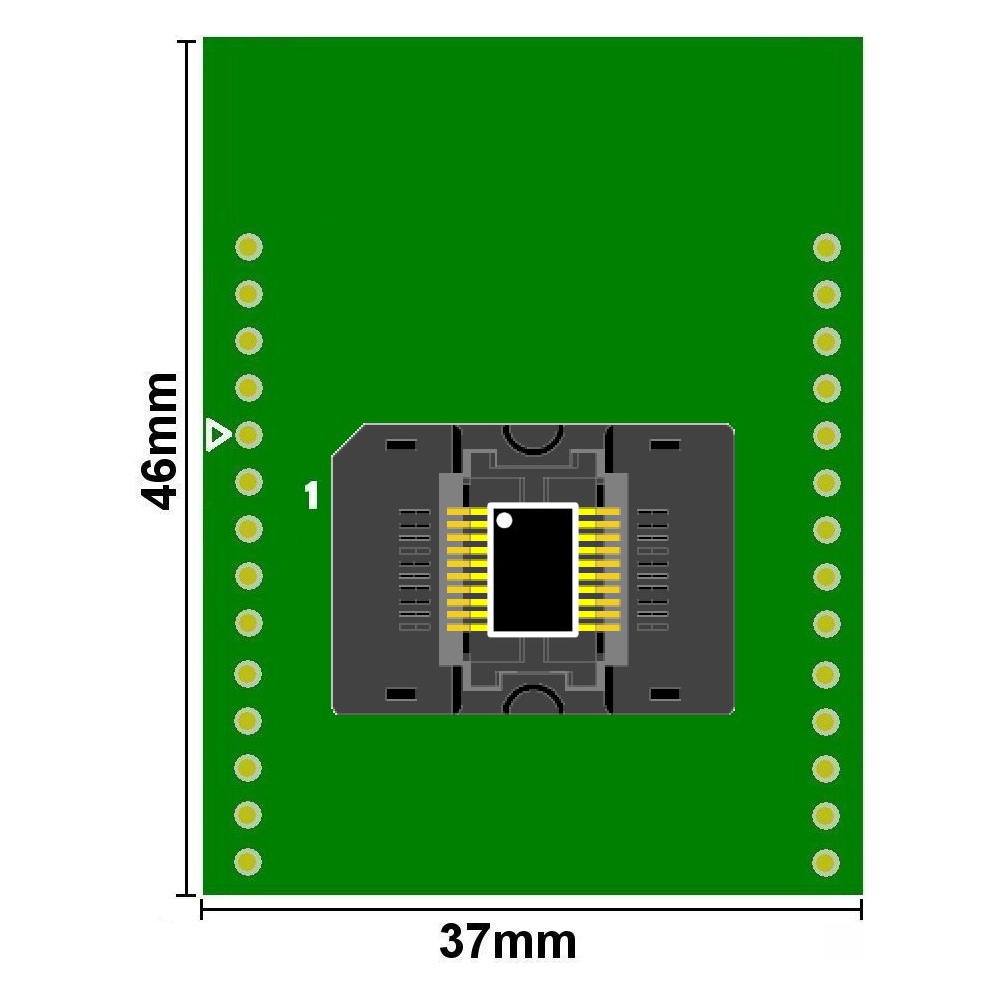

Universal programming & test package adapter for all 0.65mm pitch 4.4mm wide body TSSOP devices from 8 to 20 pins.

Maps to a standard 0.1” (2.54mm) pitch 0.6” wide Dual In-line Pin-out (DIP)

SKU : PA20TS-1

Universal programming & test package adapter for all 0.65mm pitch 4.4mm wide body TSSOP devices from 8 to 20 pins.

Maps to a standard 0.1” (2.54mm) pitch 0.6” wide Dual In-line Pin-out (DIP)

The open-type push/pop Zero-Insertion Force (ZIF) socket allows easy insertion and removal of devices.

The adapter is for use on any programming or test equipment.

Example Devices:

1-to-1 Mapping for all 8 -> 20-pin devices including Serial EEPROMs (including 24xx, 25xx & 93xx), Serial Flash, FPGA Configuration PROMs & PIC Microcontrollers

Notes

  1. The adapter uses a 676 series open-type push/pop Zero-Insertion Force (ZIF) socket from Wells, with dual-pinch contacts (Socket code: 676-3200111)
  2. It has a life cycle of 10,000 insertion cycles (minimum) under normal use.
  3. Operating temperature range: -60°C ~ +150°C
  4. Printed circuit board material: RF4 with 1 Once copper with a Nickel/Gold RoHS compliant finish
  5. Adapter is Lead-free and RoHS compliant
