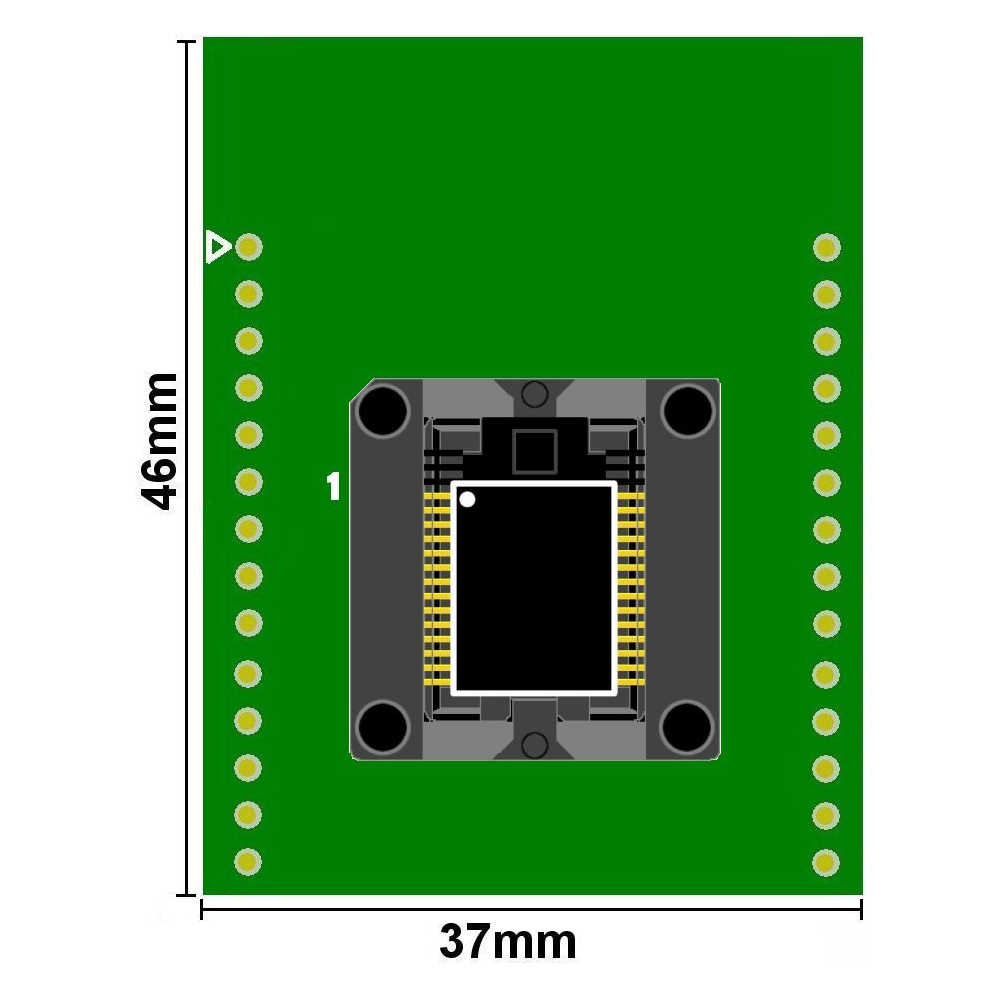

PA-28SS-28-1
  • PA-28SS-28-1
  • PA-28SS-28-1

PA-28SS-28-1

£95.00

Universal programming & test package adapter for all 0.65mm pitch 5.3mm wide body SSOP devices from 16 to 28 pins.

Maps to a standard 0.1” (2.54mm) pitch 0.6” wide Dual In-line Pin-out (DIP)

SKU : PA28SS-1

Universal programming & test package adapter for all 0.65mm pitch 5.3mm wide body SSOP devices from 16 to 28 pins.

Maps to a standard 0.1” (2.54mm) pitch 0.6” wide Dual In-line Pin-out (DIP)

The open-type push/pop Zero-Insertion Force (ZIF) socket allows easy insertion and removal of devices.

The adapter is for use on any programming or test equipment.

Example Devices:

1-to-1 Mapping for all 16 to 28-pin devices including Microchip PIC & Philips LPC microcontrollers

Notes

  1. The adapter uses an OTS series open-type push/pop Zero-Insertion Force (ZIF) socket from Enplas, with pinch contacts (Socket code: OTS-28(34)-0.65-01)
  2. It has a life cycle of 10,000 insertion cycles (minimum) under normal use.
  3. Operating temperature range: -40°C ~ +150°C
  4. Printed circuit board material: RF4 with 1 Once copper with a Nickel/Gold RoHS compliant finish
  5. Adapter is Lead-free and RoHS compliant
