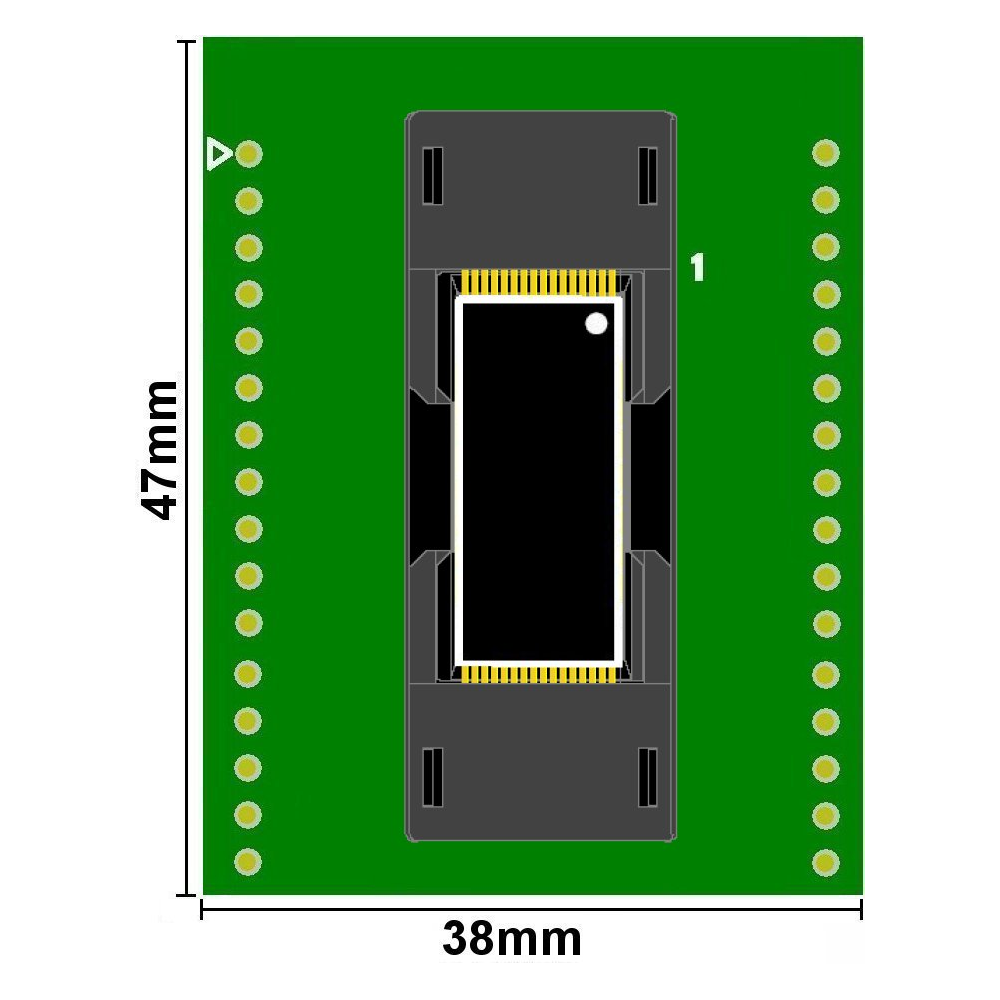

PA-32TS-32-1
  • PA-32TS-32-1
  • PA-32TS-32-1

PA-32TS-32-1

£70.00

Universal programming adapter for all 0.5mm pitch 8 x 18.4mm TSOP devices with 32 pins.

Maps to a standard 0.1” (2.54mm) pitch 0.6” wide Dual In-line Pin-out (DIP)

SKU : PA32TS-1

Universal programming adapter for all 0.5mm pitch 8 x 18.4mm TSOP devices with 32 pins.

Maps to a standard 0.1” (2.54mm) pitch 0.6” wide Dual In-line Pin-out (DIP)

The open-type push/pop Zero-Insertion Force (ZIF) socket allows easy insertion and removal of devices.

The adapter is for use on any programming or test equipment.

Example Devices:

1-to-1 Mapping for all 32-pin devices including EPROMs, Parallel EEPROMs & Flash Memory

Notes

  1. The adapter uses a 648 series open-type push/pop Zero-Insertion Force (ZIF) socket from Wells, with pinch contacts (Socket code: 648-0322211-A01)
  2. It has a life cycle of 10,000 insertion cycles (minimum) under normal use.
  3. Operating temperature range: -40°C ~ +150°C
  4. Printed circuit board material: RF4 with 1 Once copper with a Nickel/Gold RoHS compliant finish
  5. Adapter is Lead-free and RoHS compliant
